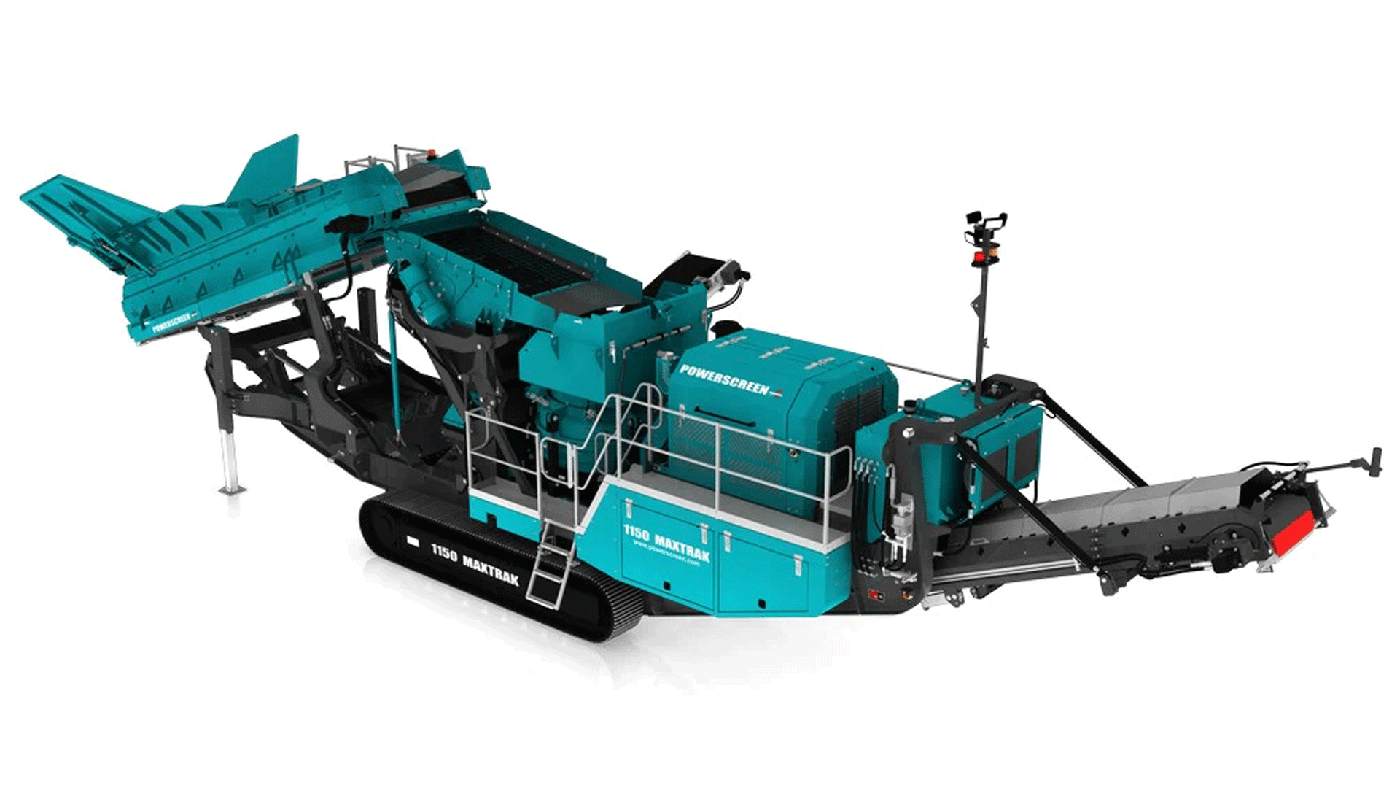

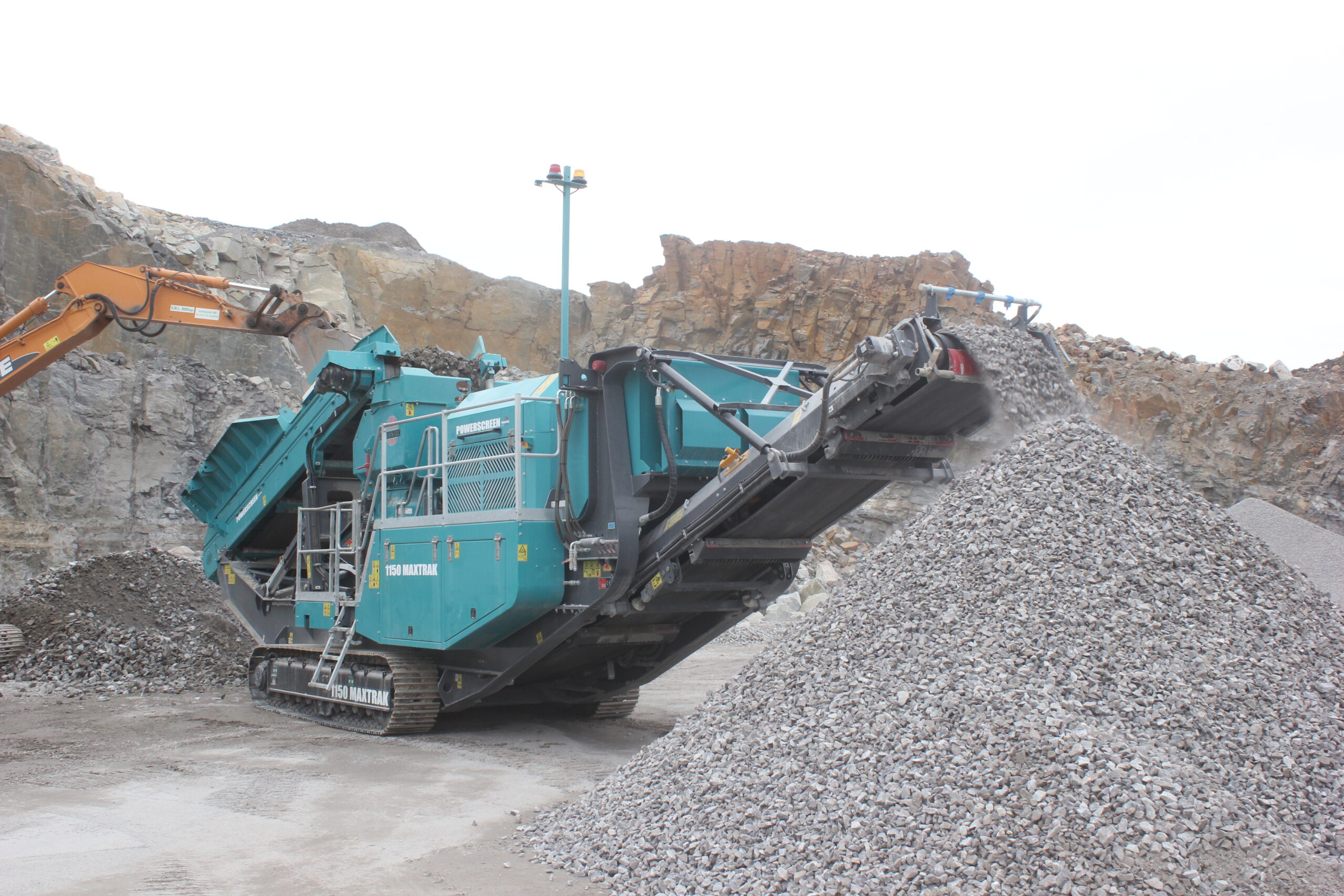

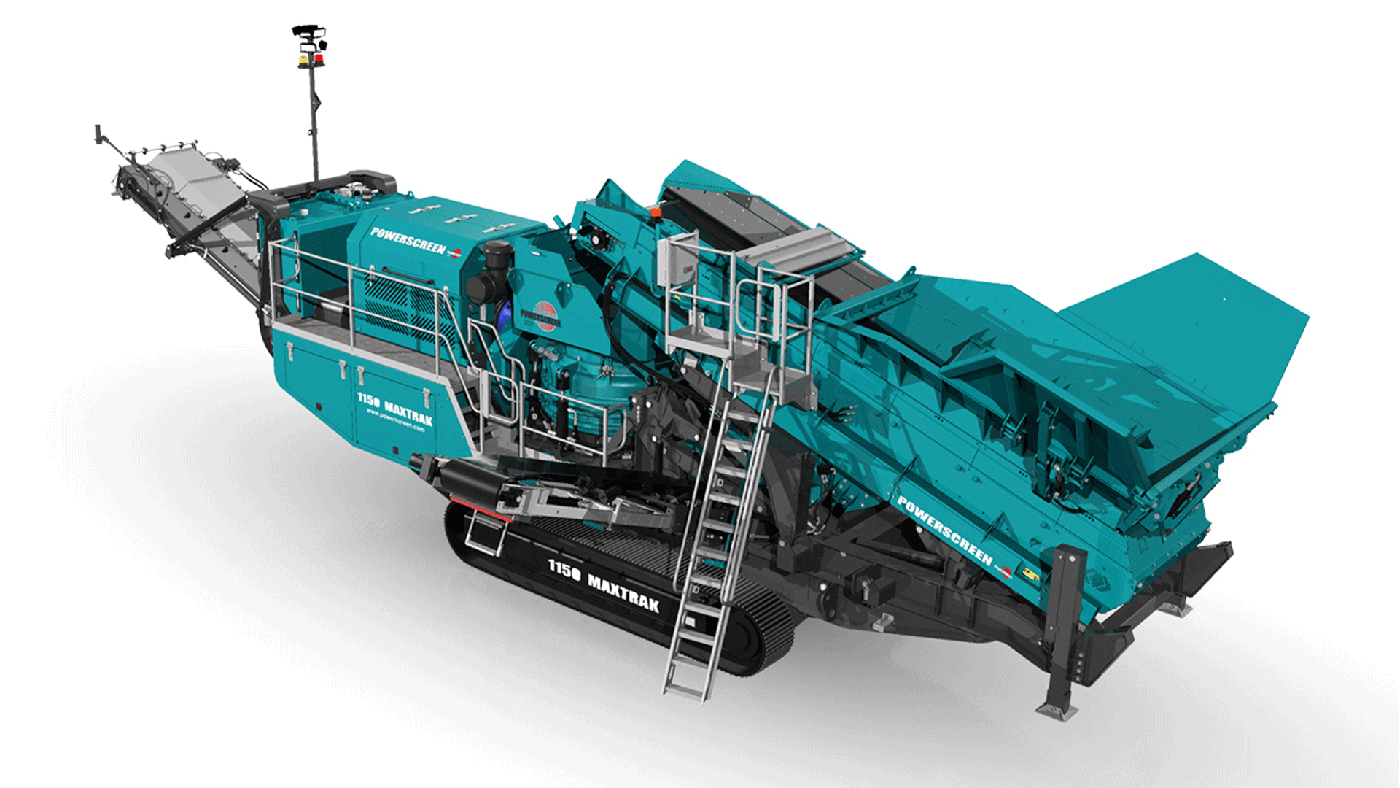

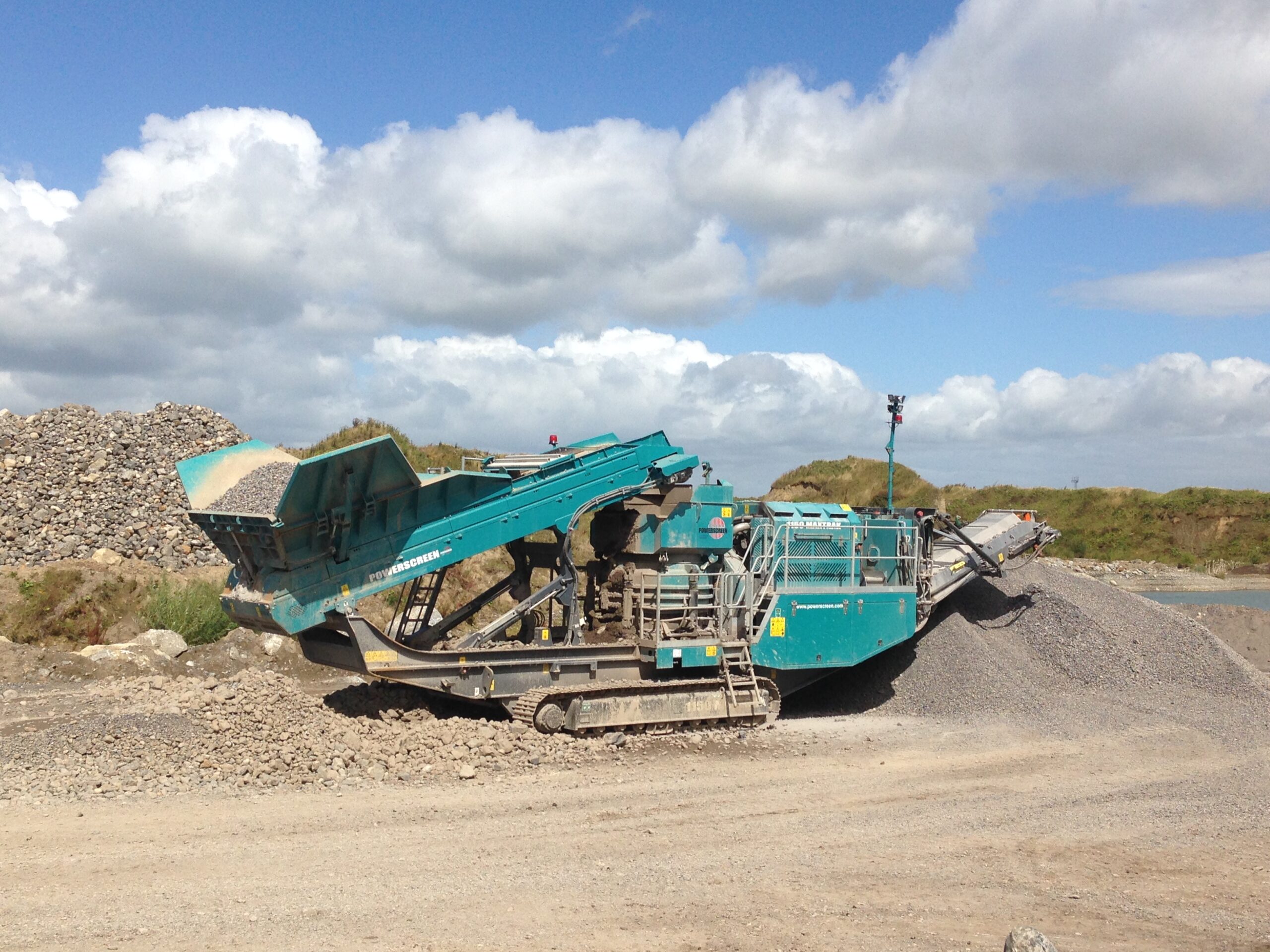

The Powerscreen 1150 Maxtrak is a high performance, medium sized track mobile cone crusher. At the heart of the Maxtrak is the Automax cone crusher with hydraulic setting, tramp release, and unblocking system. Its unique crushing action provides excellent capacity, high reduction, and good product cubicity for the production of high-quality aggregate and sub-base materials. A level probe over the feed ring regulates the feed belt to ensure the cone chamber is choke fed, essential for maximum reduction, manganese life, and optimal product shape.

Specification

Output Potential 300tph (330 US tph)*

Transport Dimensions Width: 3m Length: 16.9m Height: 3.6m

Working Dimensions Width: 4.1m Length: 15.8m Height: 5.22m

Weight Tier 4: 94,799lbs
